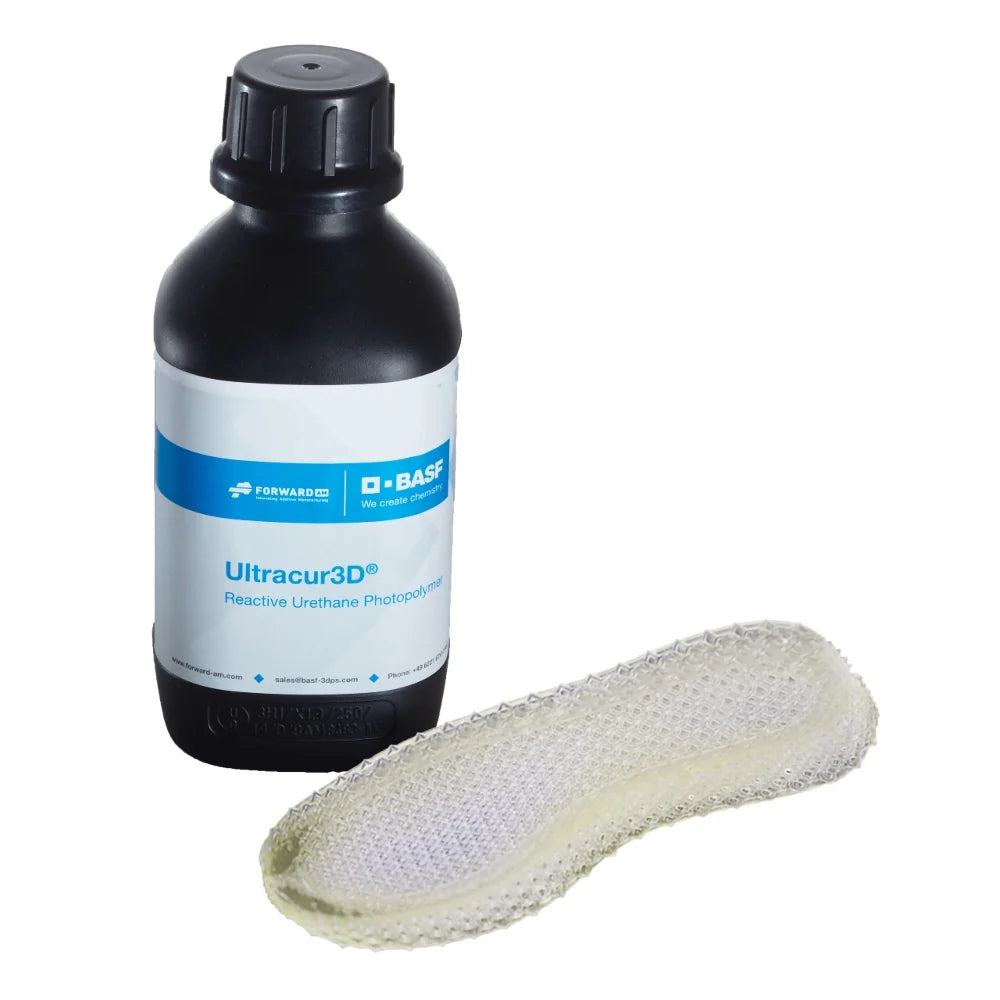

Ultracur3D® EL 4000e
Description
Description
Flexible Resin with Superior Strength, Rebound and High Hardness (Shore 90 A)
Ultracur3D® EL 4000 by Forward AM is the latest addition to our flexible and elastomeric resins. With its high hardness of Shore 90 A, it is at the high end of our portfolio, which now covers the whole spectrum from Shore 40 A to 90 A. Due to its superior strength, rebound, and tear resistance, this material is perfectly suitable for applications such as footwear, bike saddles, and cushioning pads.
The material is available in clear and black.
Material Details
- Ultracur3D® EL 4000 Extended Technical Data Sheet
- Ultracur3D® EL 4000 B Technical Data Sheet
Benefits at a Glance:
- High hardness (Shore 90 A)
- High green strength, ideal for printing intricate flexible parts
- Superior strength, rebound and tear resistance

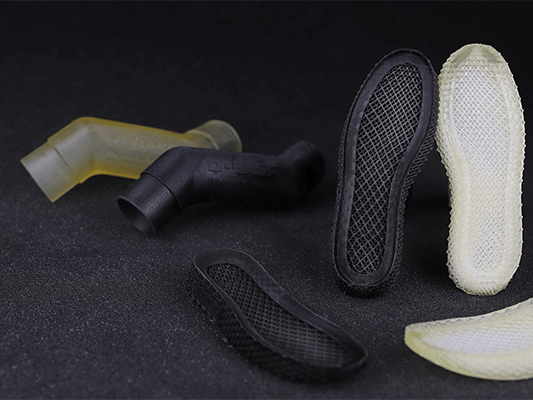

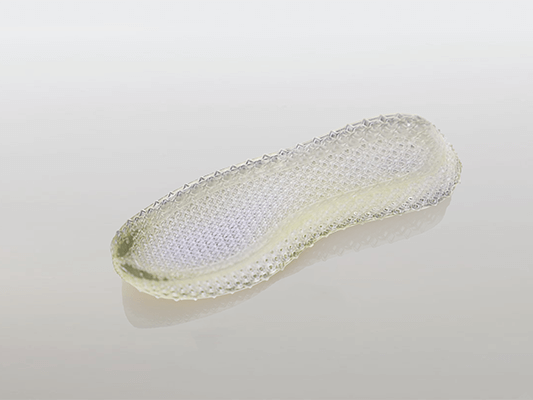

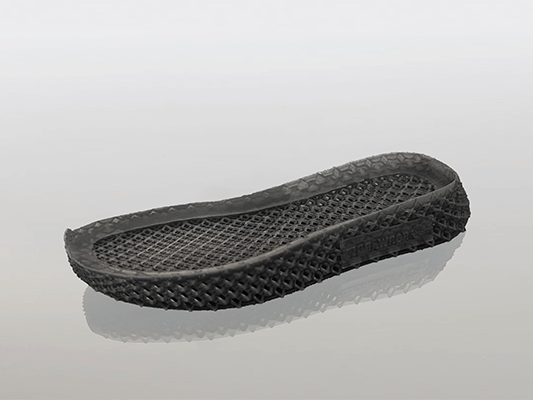

Example Applications:
- Footwear
- Bike saddles
- Cushioning pads
Material Properties:
- Elongation at break: 172 %
- Hardness: 90 A
- Rebound resilience: 30 %
- Tear Strength (Graves): 37 N/mm
