Ultracur3D® EL 150
$165.00
Unit price
/
Unavailable
Description
Description
Flexible Resin with Optimum Strength, Rebound and Medium Hardness (Shore 77 A)

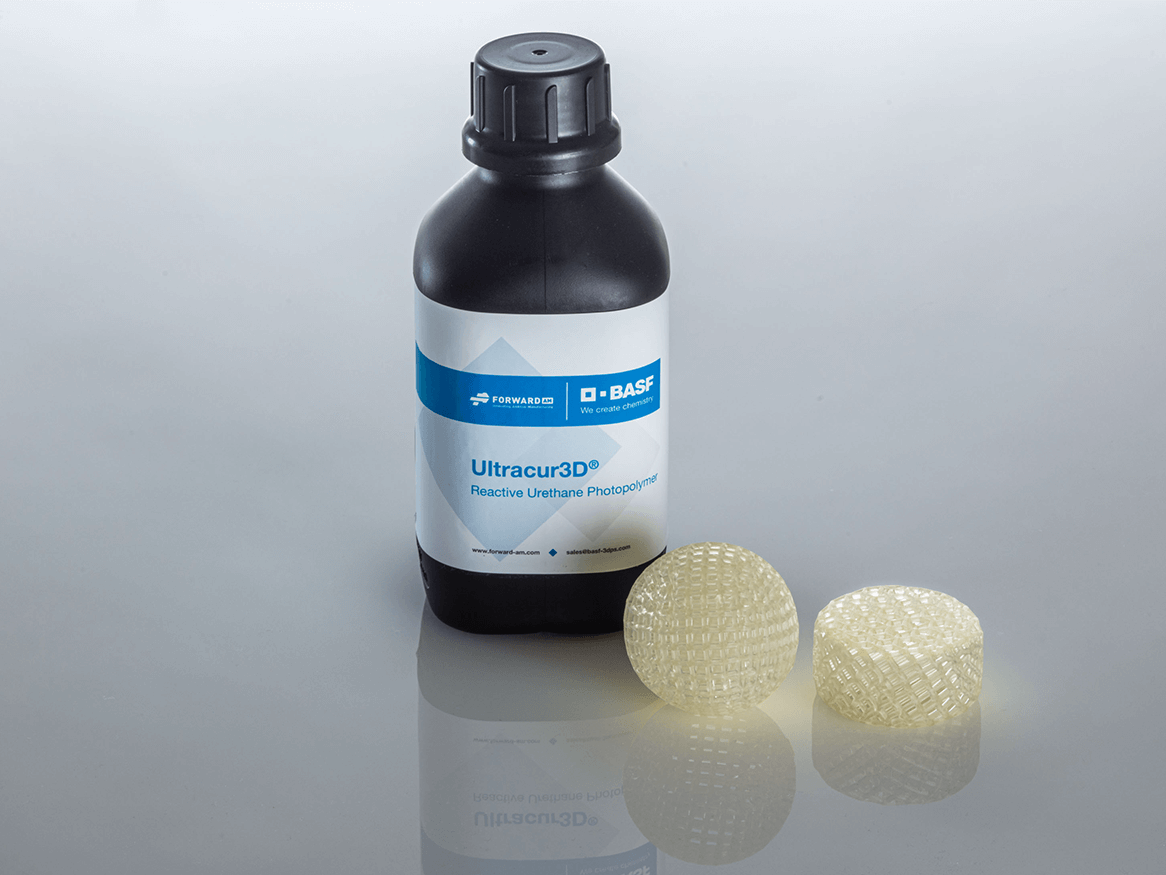

Ultracur3D® EL 150 by Forward AM is a very versatile reactive urethane photopolymer for highly elastic applications that delivers medium softness (Shore 77 A). It provides an optimal combination of high torsional strength, good elongation at break, and long-term rebound.
Material Details
Benefits at a Glance:
- Medium hardness (Shore 77 A)
- Optimum combination of high strength, elongation at break and rebound
Example Applications:
- Footwear
- Prototyping
- Cushioning pads
- Flexible grip
Material Properties:
- Rebound resilience: 28 %
- Tear strength (Graves): 14 N/mm
- Elongation at break: 182 %
- Hardness: 77 A

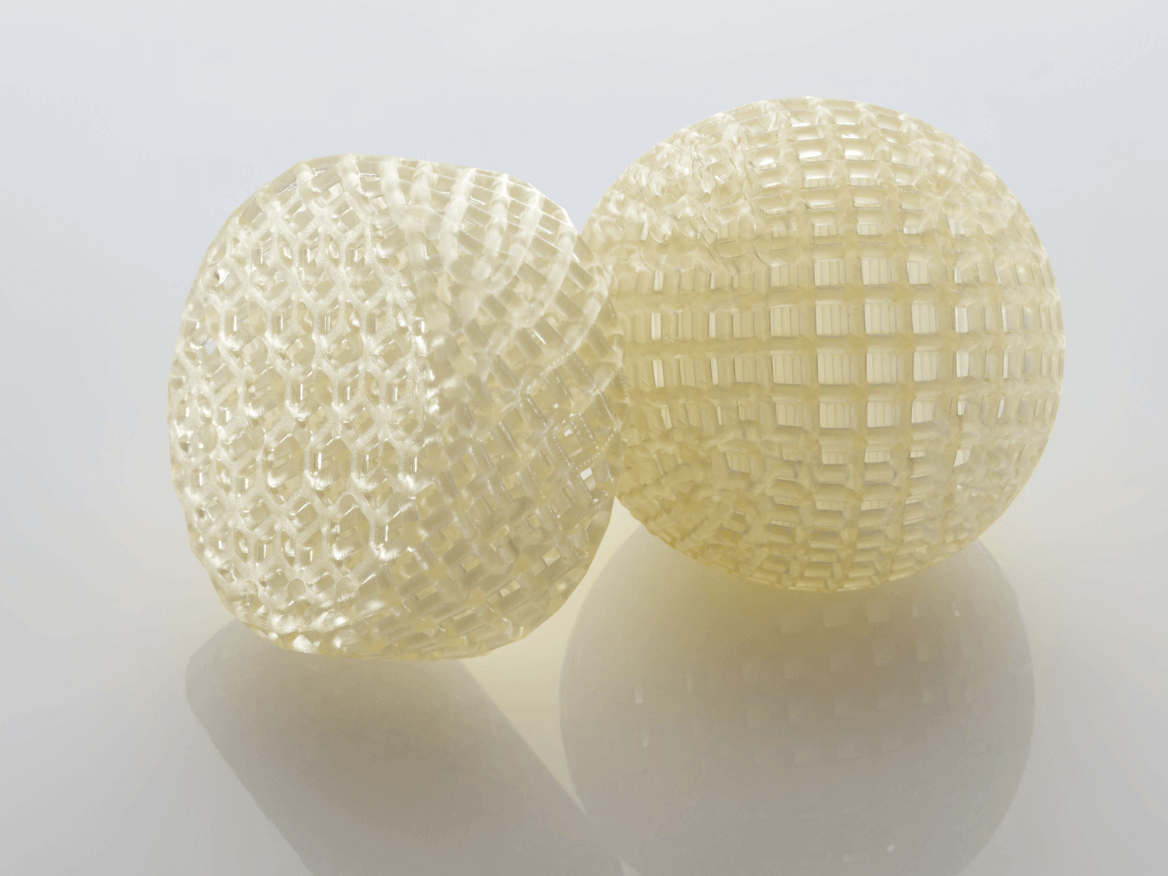

High speed videos of a drop tower test of a steel ball (~130g) onto a lattice structure (60x60x22mm³) from 0.95m height
- The Ultrasim® material model can also be used for simulating flexible materials
- Depending on the material’s energy dissipation the Ultrasim® material model can be adjusted to reflect the correct rebound behavior
Use Case of Ultracur3D® EL150
The Extra Mile: Mass-Customized Bike Saddles through Additive Manufacturing
For many cyclists, their bike is much more than a means of getting from A to B – it’s part of their personality and an essential accessory to their daily lives.
