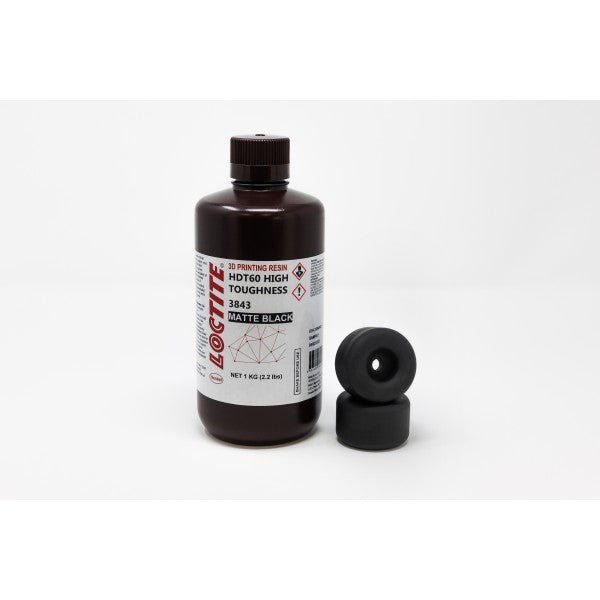

LOCTITE 3D 3843
Description
Description
Unlock the full potential of your 3D printing projects with LOCTITE 3D 3843, a durable and versatile resin engineered for demanding applications. Perfect for producing functional prototypes and end-use parts, this resin offers the ideal combination of strength, impact resistance, and flexibility.
Key Features:
- High Toughness: LOCTITE 3D 3843 is designed to deliver strong, resilient parts that can withstand mechanical stress without compromising performance.
- Impact Resistance: Built to absorb shocks, this resin ensures your parts remain intact even under heavy loads.
- Flexible Durability: The material’s flexibility prevents brittleness, making it suitable for parts that require some give.
- Smooth Finish: Achieve a professional, smooth surface directly from the printer, reducing the need for extensive post-processing.
- Versatile Applications: Ideal for use in automotive, aerospace, consumer goods, and more, LOCTITE 3D 3843 is perfect for a wide range of industrial applications.
Applications:

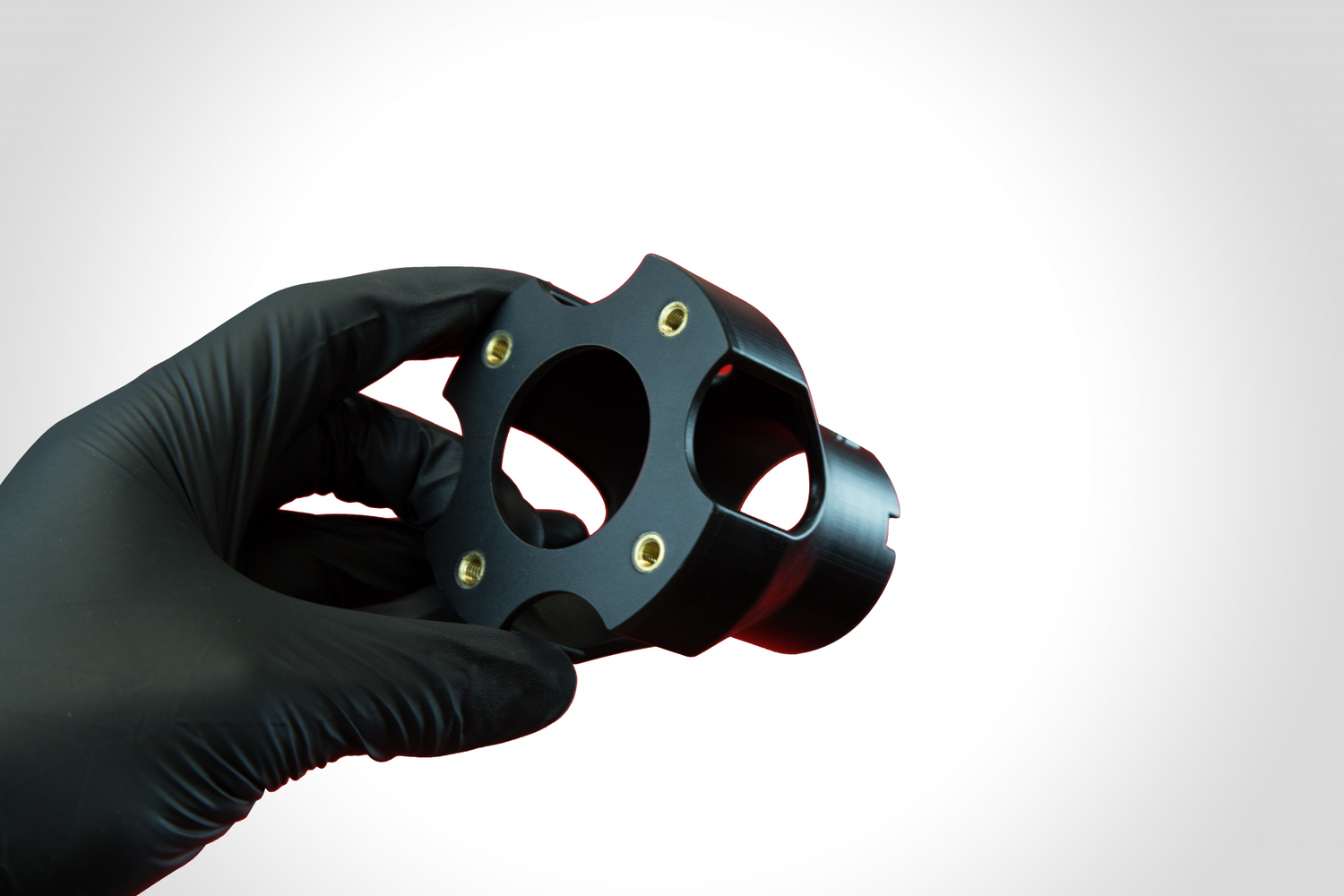

Functional Prototypes
- End-Use Parts
- Impact-Resistant Components
- Automotive and Aerospace Parts
- Consumer Goods
TECHNICAL SPECIFICATIONS:
- Tensile Stress at Break (MPa): 51
- Young's Modulus (MPa): 1800
- Elongation at Break (%): 43
- HDT at 0.455 MPa (°C): 63
- IZOD Impact (Notched, J/m): 53
- Shore Hardness (0s): 75
*Values shown are linked to LOCTITE 3843 Matte Black as reference, please refer to the specific mechanical properties for
each of the colors shown in this document
PRINTER SETTINGS:
LOCTITE 3D 3843 BK is formulated to print optimally on an industrial DLP printer. Read the safety data sheet
carefully to get details about health and safety instructions. Recommended print parameters:
- Shake resin bottle well before usage
- Temperature: 20°C to 35°C
- Intensity: 3 mW/cm² to 7 mW/cm²
PRINTER COMPATABILITY:
LOCTITE Resins are designed for use on all open-source SLA and DLP 3D Printers in the range of 385-420nm.
LOCTITE 3D 3843 HDT60 has been validated on the following 3D printers:
- ETEC Xtreme 8K
- ETEC E1
- Stratasys Origin One
- RapidShape i30+
- RapidShape i50+
- RapidShape i100+
- Photocentric LC Opus
- Zortrax Inkspire 2
- Fortify Flux One
- Genera G2
- Prusa SL1S Speed
- Sisma Everes Uno
- Asiga MAX UV
- Asiga PRO 4K XL
- Asiga PRO 4K UV
- Rayshape3D - Shape1+
- Atum3D DLP Station 5
Why Choose LOCTITE 3D 3843?
When you need a resin that combines durability, impact resistance, and flexibility, LOCTITE 3D 3843 is your go-to solution. Trusted by professionals across industries, this resin ensures your 3D printed parts perform at their best.
Order Today!
Elevate your 3D printing with LOCTITE 3D 3843 and produce parts that are built to last. Add to cart now and start creating with confidence!
Technical Data Sheet:
