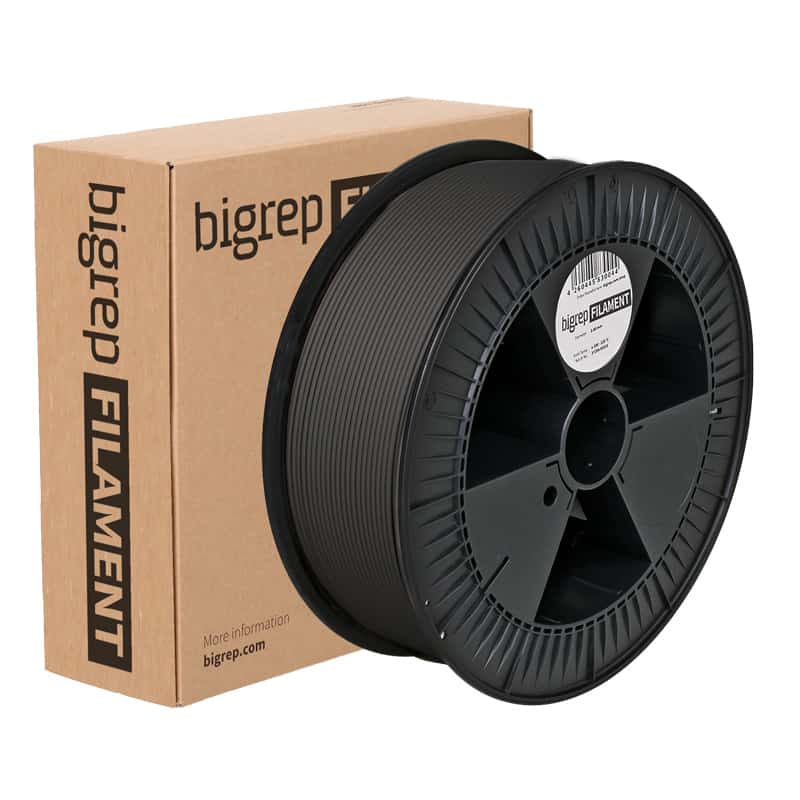

Big Rep HI-TEMP CF

$79.00
Color
Diameter
Weight

Big Rep HI-TEMP CF - Dark Grey / 1.75 mm / 0.75 KG is backordered and will ship as soon as it is back in stock.

Description

BigRep’s HI-TEMP CF is a high-strength and heat-resistant engineering-grade filament. Highly stiff and incredibly durable, the material effectively maintains its form under high heat conditions. Ideal for the thermoforming process.

A reliable and easy to use the material, BigRep HI-TEMP CF is optimized for large-format 3D printing and suitable for environments with limited control like factory floors.

Highlights:
  • Stiff and durable parts
  • Lightweight
  • Heat resistant up to 115 °C
  • Class A surface finish
  • Low moisture absorption
Applications

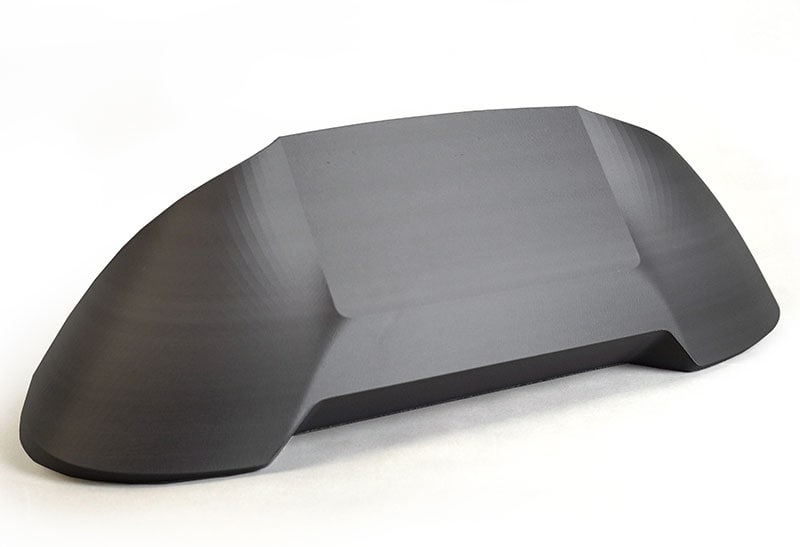

 HI-TEMP CF is the perfect match for the production of patterns and moulds. With an excellent combination of heat and UV resistance – rivalling ASA – and durability, its also ideal for functional applications regularly exposed to heat – such as in automotive or automation.

- Production of patterns and moulds
- Functional applications regularly exposed to heat

Properties
- Material: BioPolymer with carbon fibre
- Diameter: 1.75 & 2.85 mm
- Density: 1.20 g/cm³
- Flexural Modulus (ISO 178): 7000 MPa
- Tensile Strength (ISO 527): 65 MPa
- Impact Strength Notched (ISO 179): 4.5 kJ/m²
- Heat Resistance HDT / B: 115 °C

Compatibility
- BigRep ONE.4
- BigRep STUDIO.2
- BigRep PRO.2
- All compatible FFF 3D printers

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ELK3D Store

Big Rep HI-TEMP CF

From $79.00

BigRep’s HI-TEMP CF is a high-strength and heat-resistant engineering-grade filament. Highly stiff and incredibly durable, the material effectively maintains its form under high heat conditions. Ideal for the thermoforming process.

A reliable and easy to use the material, BigRep HI-TEMP CF is optimized for large-format 3D printing and suitable for environments with limited control like factory floors.

Highlights:
Applications
 HI-TEMP CF is the perfect match for the production of patterns and moulds. With an excellent combination of heat and UV resistance – rivalling ASA – and durability, its also ideal for functional applications regularly exposed to heat – such as in automotive or automation.

- Production of patterns and moulds
- Functional applications regularly exposed to heat

Properties
- Material: BioPolymer with carbon fibre
- Diameter: 1.75 & 2.85 mm
- Density: 1.20 g/cm³
- Flexural Modulus (ISO 178): 7000 MPa
- Tensile Strength (ISO 527): 65 MPa
- Impact Strength Notched (ISO 179): 4.5 kJ/m²
- Heat Resistance HDT / B: 115 °C

Compatibility
- BigRep ONE.4
- BigRep STUDIO.2
- BigRep PRO.2
- All compatible FFF 3D printers

Color

1 color available

Diameter

  • 1.75 mm
  • 2.85 mm

Weight

  • 0.75 KG
  • 2.5 KG
  • 4.5 KG
  • 8 KG
