Introducing the Admaflex Technology

From design to manufacturingof functional parts with form freedom

Get Quote

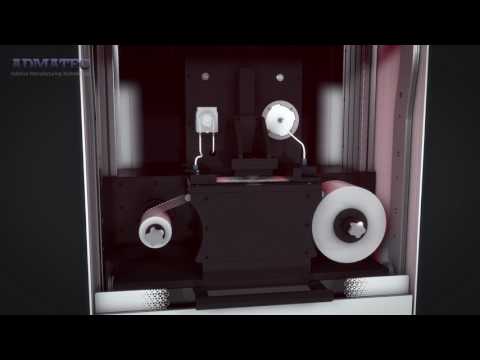

Admaflex 130 Entry

Our entry-level machine for 3D printing of advanced ceramics. Admaflex technology is ideal for the development and 24/7 digital serial production of functional and aesthetical parts requiring complex geometries, high resolution, fine details, and smooth surface while benefiting from excellent material properties. The Admaflex 130 Entry is fully upgradable to theAdmaflex 130 Evolution.



Navigation options
Search
ELK3D Store

Admaflex 130 Entry

$0.00

Our entry-level machine for 3D printing of advanced ceramics. Admaflex technology is ideal for the development and 24/7 digital serial production of functional and aesthetical parts requiring complex geometries, high resolution, fine details, and smooth surface while benefiting from excellent material properties. The Admaflex 130 Entry is fully upgradable to the Admaflex 130 Evolution.

ADMAFLEX 130 ENTRY TECHNICAL SPECIFICATIONS

Technology

Digital Light Processing (DLP),
also known as Vat Photo Polymerization (VPP),
or stereo Lithography based Ceramic Manufacturing (LCM)

Printing build volume (X,Y,Z)

102 x 64 x 400 mm | 4.01 x 2.51 x 15.7 inch (40 μm)

Layer thickness

10 - 200 µm, depending on material type

Build speed (layers/h)

Up to 300 layers per hour

Build speed (mm/h)

Up to 60 mm/h, depending on material type

Wall thickness

0.1 - 10 mm in Al2O3

Build platform fixture

Zero-point clamping system

Machine dimension (WxDxH)

980 x 670 x 1880 mm | 38.5 x 26.37 x 74 inches

Weight

ca. 300 kg | 660 lbs

Required working temperature

22 +/- 5°C

Required working humidity

< 40% (in standard configuration)

Connectivity

Ethernet, USB

Power requirements

110 / 230 V 6 A

File compatibility

SLC, STL

Final product density

Technical ceramics > 98.5% - 99.9%*
*depending on sintering curve
