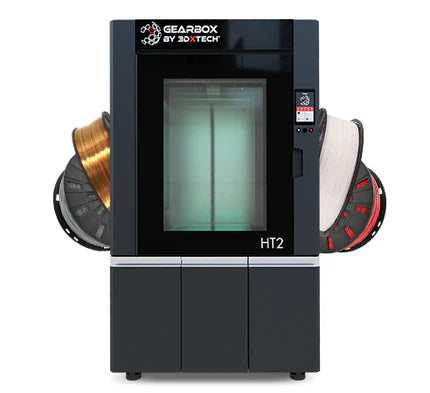

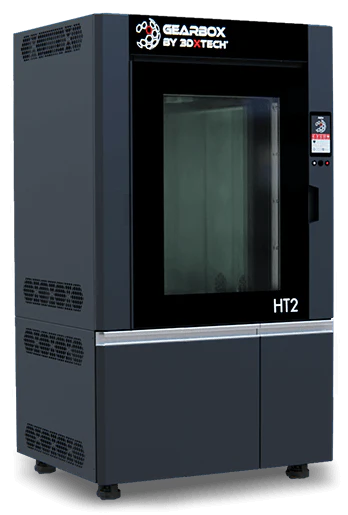

Gearbox HT2 3D Printer

Large Heated Build Chamber

Precisely controlled for printing ultra-polymers

  • Actively heated chamber reaches up to 225ºC
  • Ideal for printing material such as Ultem™ PEI, PPSU, and PEEK
  • Improved part strength and dimensional stability
  • Huge 18″ x 18″ x 32″ [10,368in³ volume]
  • Print large parts or multiple small parts

Supported by its Precision Motions Portal, a durable, custom-built gantry, along with Bosch Rexroth CNC components, the PRO consistently delivers on speed, precision, and quality. Now thanks to JUMPSTART, a new BigRep hybrid software-hardware solution that lets you skip the hassle and just start printing, the PRO is easier than ever to use.

Industrial High-Temp 3D Printing

Get Quote

Features

  • PEEK & Ultem™ Ready

    Designed to print high-temp materials including PEEK and Ultem™ as well as our extensive line of Carbon Fiber, ESD-Safe, and Flame Retardant materials.

  • Power, Precision, & Priced Affordably

    The Gearbox HT2 was created by people who understand both 3D printing and 3D filament. The HT2 was designed to print large scale, fast, and accurately all at once, without the ridiculous price tag of closed-source systems.

  • NO MATERIAL LOCK

    While you will have the entire 3DXTECH™ material library at your disposal we will never require you to use our materials. Creating quality 3D prints is our only priority.

MATERIALS PERFORMANCE VS. COST

Pre-programmed for success

  • Print settings for popular 3DXTECH materials pre-programmed into slicer
  • Open-materials philosophy – print materials from any source
  • Hardened system ready for abrasive materials such as Carbon Fiber and Glass Fiber
  • Print ultra polymers Ultem™ PEI, PEEK, and PEKK composites
  • Engineering grades on demand – nylon, polycarbonates, PPS, and more!

GEARBOX HT2 SPECIFICATIONS

Printing Technology:  Fused Filament Fabrication [FFF]
Build Volume:  18″ x 18″ x 32″ [457mm x 457mm x 813mm]
Heated Build Chamber:  Up to 225ºC
Number of Extruders:  2 [Model & Support]
Extruder Temperature:  Up to 500ºC
Print Bed Type:  Vacuum Plate
Print Bed Surface:  Removable Plastic Build Sheet
Filament Diameter:  1.75mm
Onboard Filament Capacity:  16kg [4 x 4kg Reels]
Filament Storage:  Heated & Actively Dried Bays

Unlimited Open Source Options
Model Materials:  PEEK, PEKK, PEI [Ultem™], PPA, HTN, PA12, PA6, PC, PC/ABS, PET, ASA, ABS
Specialty Grades:  Carbon Fiber, Glass Fiber, ESD-Safe, Flame Retardant

Print Speed:  Up to 300mm/s
Nozzle Sizes:  .25, .3, .35, .4, .5, .75, 1.0 mm
Resolution [Theoretical]:  XY: ± .127 mm or ± .0015 mm/mm [Whichever is Greater]
Mechanical Actuation: High-Speed Servos
Bed Leveling:  Automatic
Slicer: Gearbox3D Custom Slicer
Control Panel: 7″ Color Touch Screen

External Dimensions: 44.8″ x 36.1″ x 78″
Printer Weight: 1450 lbs [658 kg]
Power Requirements: 240 VAC, 1 Phase, 60 Hz, 50 Amps, NEMA 6-50 Plug Provided
Manufacturing Location: Grand Rapids, MI [USA]

ELK3D Store

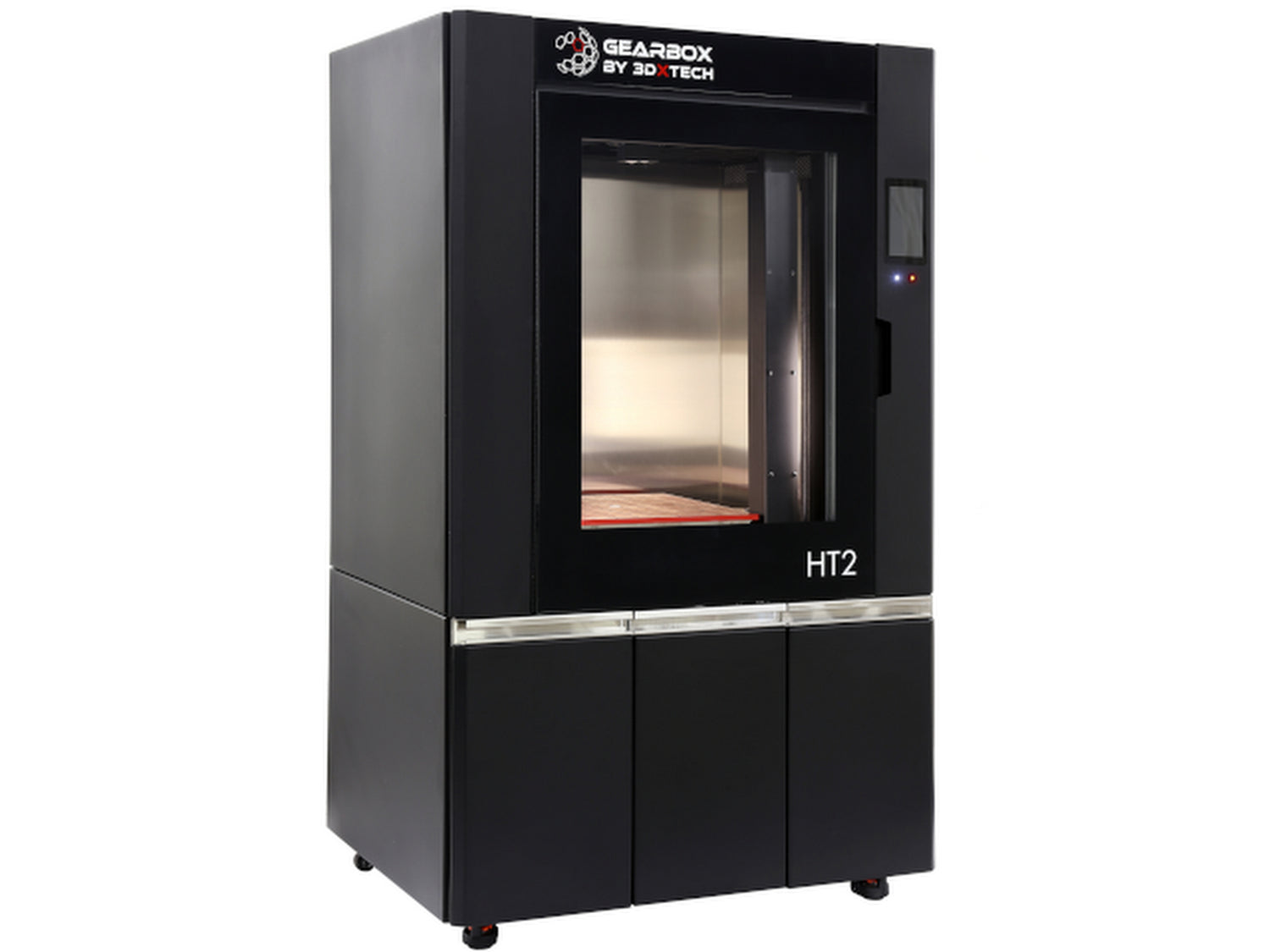

Gearbox HT2 3D Printer

$139,995.00

Experience the pinnacle of 3D printing with the Gearbox™ HT2.0, meticulously designed, developed, and manufactured in the USA. Revolutionize your printing capabilities with this cutting-edge machine, eliminating compromises and inflated costs. Engineered to handle ULTEM™, PEKK, and PEEK materials effortlessly, along with a wide range of Carbon Fiber options, the HT2 is a powerhouse of versatility. With pre-programmed settings optimized for high-performance materials, achieving exceptional results is effortless. Embracing the ethos of open-source, this printer offers freedom of filament choice while guaranteeing top-tier performance. Now available for orders, the HT2 promises to elevate your 3D printing endeavors to unprecedented levels.

Key Features of the 3DXTECH GEARBOX HT2 HIGH TEMP 3D PRINTER:
Specifications

Printing Technology:  Fused Filament Fabrication [FFF]
Build Volume:  18″ x 18″ x 32″ [457mm x 457mm x 813mm]
Heated Build Chamber:  Up to 225ºC
Number of Extruders:  2 [Model & Support]
Extruder Temperature:  Up to 500ºC
Print Bed Type:  Vacuum Plate
Print Bed Surface:  Removable Plastic Build Sheet
Filament Diameter:  1.75mm
Onboard Filament Capacity:  16kg [4 x 4kg Reels]
Filament Storage:  Heated & Actively Dried Bays

Unlimited Open Source Options
Model Materials:  PEEK, PEKK, PEI [Ultem™], PPA, HTN, PA12, PA6, PC, PC/ABS, PET, ASA, ABS
Specialty Grades:  Carbon Fiber, Glass Fiber, ESD-Safe, Flame Retardant

Print Speed:  Up to 300mm/s
Nozzle Sizes:  .25, .3, .35, .4, .5, .75, 1.0 mm
Resolution [Theoretical]:  XY: ± .127 mm or ± .0015 mm/mm [Whichever is Greater]
Mechanical Actuation: High-Speed Servos
Bed Leveling:  Automatic
Slicer: Gearbox3D Custom Slicer
Control Panel: 7″ Color Touch Screen

External Dimensions: 44.8″ x 36.1″ x 78″
Printer Weight: 1450 lbs [658 kg]
Power Requirements: 240 VAC, 1 Phase, 60 Hz, 50 Amps, NEMA 6-50 Plug Provided
Manufacturing Location: Grand Rapids, MI [USA]
